Silicon Carbide Graphite Crucible

Clay Graphite Crucible

ND Series Crucible

Product Category

Product Details

It is dedicated for resistance furnace, mainly used for smelting and heat preservation of aluminum alloy and zinc alloy.

Product Details

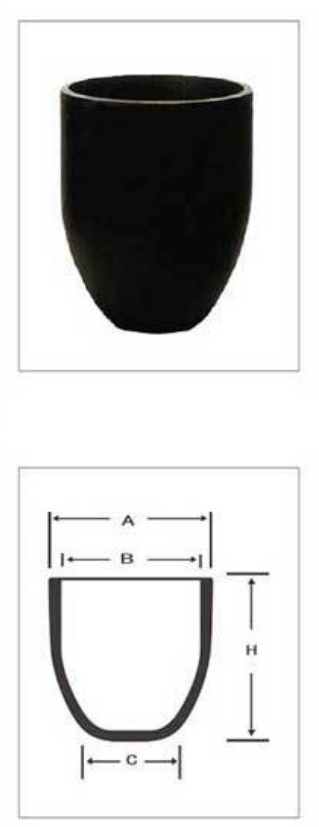

Size	U0D(A)±5mm	UID(B)±5mm	B0D(C)±5mm	Height ±5mm
26	170	130	115	220
28	170	130	115	260
30	205	162	130	265
40	240	200	170	335
60	270	210	180	335
80	290	230	225	340
85	295	240	225	400
90	305	248	150	345
95	310	255	170	345
100	310	240	220	350
110	325	266	205	380
153	375	310	200	400
154	395	325	220	580
155	390	330	220	650
170	355	295	280	480
200	400	349	215	510
201B	420	360	215	505
202	425	350	230	530
203	430	355	230	600
204	420	360	210	500
205	430	360	230	650
292	510	444	290	450
293	500	444	290	510
300	450	390	250	500
339	460	380	220	620
349	450	390	190	620
350	465	400	200	700
353	600	535	340	450
355	470	400	260	680
355H750	470	400	270	750
360	460	400	280	681
364	530	460	310	455
365	530	460	310	530
370	530	460	310	570
451	515	453	280	610
452	520	444	270	610
453	530	450	270	680
455	520	450	278	663
463	565	500	310	617
464	580	500	310	617
501	525	433	255	740
505	530	445	255	785
509	540	460	330	610
511	555	467	327	660
512	560	467	325	665
520	510	430	300	760
521	510	435	300	760
605	510	460	365	740
610	550	465	365	785
650	550	480	421	800
700	600	503	310	500
759	600	505	310	530
760	600	516	310	630
765	616	534	310	640
765H760	626	546	346	760
780	580	500	330	880
790	640	556	310	640
801	600	530	300	680
802	605	530	300	710
803	616	532	320	800
804	620	532	320	800
810	620	536	320	830
820	700	605	290	520
830	616	536	360	700
850	610	530	320	800
910	710	608	290	600
1000	715	616	300	700
1020	720	635	440	660
1050	716	635	440	720
1100	590	500	370	1130
1200	720	622	300	740
1300	713	642	440	820
1400	765	670	440	650
1500	735	640	460	900
1501	745	MO	300	910
1503	750	640	300	910
1550	775	682	400	750
1551	775	680	300	750
1600	775	690	300	750
1650	775	680	300	810
1800	770	670	400	900
1803	770	680	300	900
BN600	785	694	312	900
1804	775	680	310	900
1950	835	737	350	750
2050	800	710	560	850
2100	826	746	290	900
2250	875	785	350	880
2300	870	765	355	1000
2350	880	784	355	1000
2450	880	770	350	1050
2500	880	775	350	1140
2550	880	786	355	1100
2600	900	785	360	1140
3300	970	870	730	900
5000	1040	920	550	1320
D350H700	430/350	255	260	700
D850H1600	850	750	560	1600
D880H1300	880	795	360	1300
D980H1500	980	880	450	1500

Applications

Specially for electric resistance furnace, suitable for melting and heat preservation of aluminum alloy and zinc alloy.

Performance Characteristics

Energy saving and long service life.

Metal Casting Temperature

620-920℃
