Crucible with Pouring Nozzle
Product Category
Product Details
According to the actual needs of customers, the crucible with pouring nozzle can be customized.
CONTACT US
Product Details

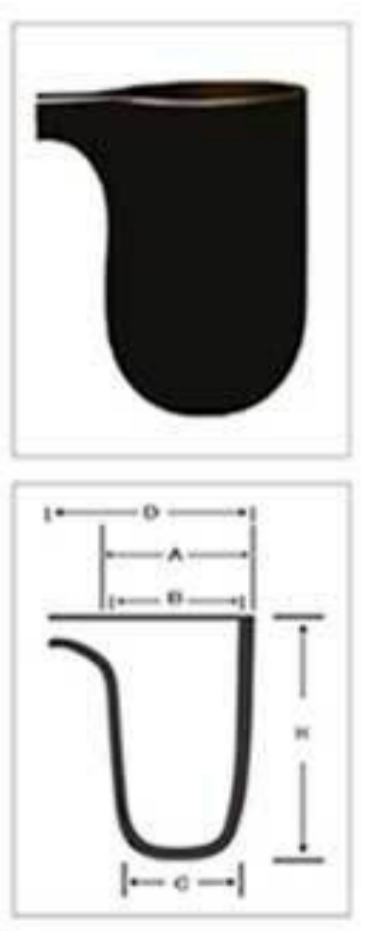

| Size | UOD(A)±5mm | UID(B) ±5mm | BOD(C) ±5mm | Height±5mm | UOL(A) ±5mm |
| Z-180 | 370 | 290 | 230 | 500 | 590 |
| Z-803 | 616 | 536 | 356 | 800 | 780 |
| Z-804 | 630 | 536 | 356 | 800 | 790 |
| Z-1270 | 615 | 540 | 320 | 1000 | 790 |
| Z-1550 | 775 | 680 | 450 | 750 | 970 |
| Z-1650 | 775 | 675 | 395 | 800 | 970 |
| Z-1800 | 780 | 680 | 300 | 900 | 970 |
| Z-1920 | 700 | 608 | 665 | 1100 | 910 |
| Z-1960 | 670 | 580 | 650 | 1230 | 900 |
| Z-2000 | 697 | 610 | 380 | 1230 | 910 |
| Z-2250 | 875 | 784 | 350 | 875 | 1085 |
| Z-2300 | 880 | 775 | 355 | 1000 | 1050 |
| Z-2400 | 880 | 780 | 350 | 1100 | 1080 |
| Z-2630 | 750 | 660 | 420 | 1230 | 955 |
| Z-2700 | 880 | 780 | 330 | 1170 | 1065 |
Keywords：
