Induction Furnace Crucible
Product Category
Product Details
Product Details

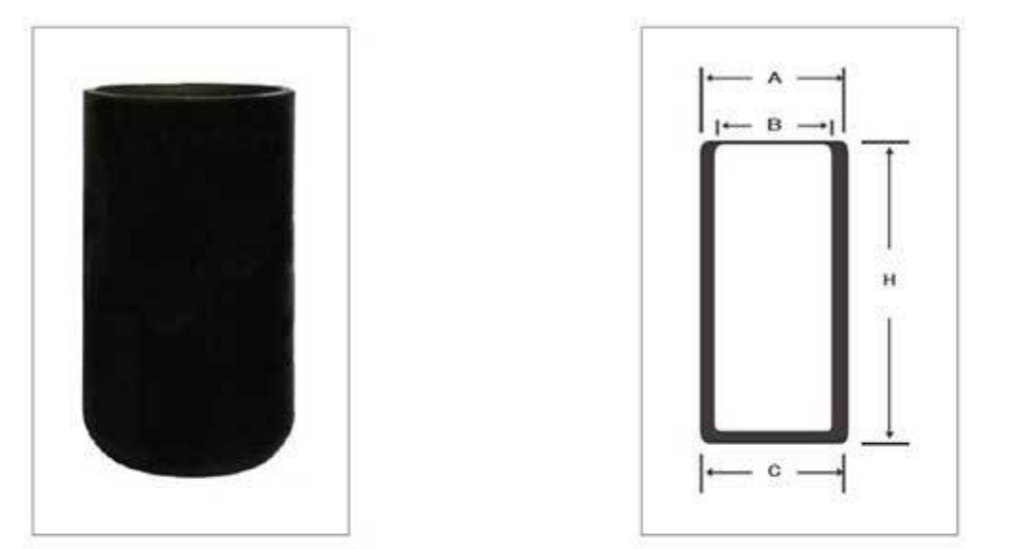

| Size | U0D(A)±5mm | UID(B) ±5mm | BOD(C) ±5mm | Height±5mm |
| IND19 | 173 | 131 | 130 | 220 |
| IND88 | 260 | 200 | 250 | 400 |
| IND94 | 240 | 180 | 160 | 550 |
| IND115 | 255 | 195 | 190 | 570 |
| IND160 | 315 | 255 | 300 | 470 |
| IND165 | 334 | 294 | 292 | 440 |
| IND190 | 340 | 280 | 332 | 490 |
| IND200 | 420 | 330 | 320 | 530 |
| IND230 | 355 | 285 | 340 | 600 |
| IND270 | 270 | 200 | 220 | 805 |
| IND284 | 410 | 340 | 392 | 600 |
| IND285 | 410 | 340 | 392 | 650 |
| IND290 | 394 | 314 | 381 | 540 |
| IND330 | 385 | 300 | 360 | 700 |
| IND480 | 510 | 420 | 400 | 710 |
| IND580 | 420 | 360 | 300 | 840 |
| IND600 | 620 | 525 | 620 | 470 |
| IND720 | 570 | 490 | 570 | 600 |
| IND763 | 580 | 490 | 440 | 800 |
| IND770 | 640 | 560 | 640 | 500 |
| IND785 | 620 | 530 | 620 | 600 |
| IND900 | 520 | 425 | 510 | 960 |
| IND905 | 620 | 530 | 620 | 650 |
| IND1250 | 620 | 535 | 620 | 850 |
| IND1450 | 710 | 630 | 710 | 720 |
| IND1700 | 610 | 508 | 540 | 1200 |
| IND2560 | 710 | 630 | 710 | 720 |
| IND3100 | 780 | 645 | 780 | 1400 |
| IND3900 | 820 | 720 | 820 | 1400 |
| IND4000 | 850 | 750 | 850 | 1300 |
| IND5300 | 900 | 785 | 900 | 1600 |
| IND5500 | 978 | 876 | 700 | 1470 |
| IND10000 | 1150 | 1020 | 650 | 1900 |
Applications
Specially for induction furnace. According to the type of metal being smelted, it is divided into two categories, aluminum alloy is low temperature, copper alloy, gold and silver are high temperature. We also help customers choose the right material based on the sensing frequency, coil size, and shape.
Performance Characteristics
Good crack resistance.
Metal Casting Temperature
620-920℃
Keywords：
C Series Crucible CD Series Crucible ND Series Crucible Induction Furnace Crucible
